Mercedes M103

First, remove the air filter. Next, detach the mechanical injectors along with the distributor.

The airflow sensor plate is no longer required. Remove it and secure the moving component beneath with a plastic strap.

Injector rail

To properly install the injectors, it is necessary to cut a part of the intake manifold, as shown in the photo below.

Apply engine sealant to install the injector sleeves.

Insert the injectors first into the fuel rail, followed by the manifold.

Bend the metal brackets of the rail and drill a hole in each bracket to insert the screw that will secure it to the intake manifold.

Idle air control valve (ICV)

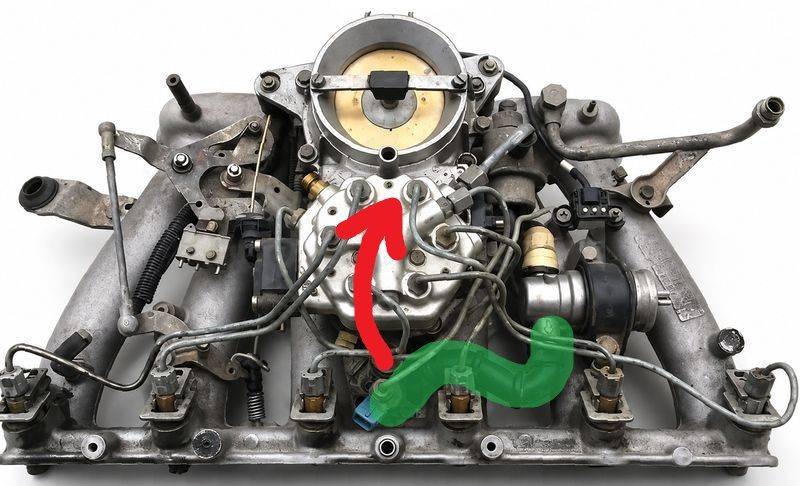

The existing air supply configuration from the ICV is not suitable for use.

Install a new air supply fitting beneath the throttle and connect the air supply hose to the idle valve.

If your engine is equipped with the EGR system (U.S. version), there is no need to install the fitting. Simply block the EGR piping and use the EGR line to supply air from the ICV.

Clean the valve internals using carburetor cleaner and lubricate them with oil. Avoid using WD-40, as it is not a good lubricant. Bicycle chain lubricant is well suitable for this purpose.

MAP

The precise placement of the MAP sensor is crucial for optimal engine performance. Please position the MAP sensor exactly as shown on the photo

Drill a 13mm hole for the sensor and an 8mm hole for the securing bolt. Apply grease to the drill tip to capture debris. It is recommended to clean the intake manifold thoroughly after drilling to ensure no metal debris remains.

Apply a sealant to fill the hole, ensuring an adequate amount of sealing paste is used due to the rough surface of the intake manifold.

Secure sensor with included screw. Apply sealant to the thread, to prevent air leaks and unscrewing.

Never install the sensor with the wires facing upwards to prevent water from running along the cable, which could lead to connector flooding and subsequent oxidation.

Secure the sensor using the screw. Apply sealant to the threads to prevent air leaks and ensure the sensor remains securely fastened.

Warning

Installing a MAP sensor in place of a cold start injector is strictly prohibited.

ECU and wiring

Warning

Disconnect the battery when servicing the electrical system. Reconnect the battery only when the engine needs to be started.

The ECU is designed to be dust and splash-resistant but is not suitable for continuous exposure to water or pressurized water. It is recommended to install it in a dry and secure location. Ensure that the ECU is not installed with the cable facing upwards, as this may allow water and moisture to enter the unit.

Warning

Wire colors may change without prior notice. If wires have text labels, use these labels to identify the purpose of each wire.

The wiring harness for 4-cylinder and 6-cylinder engines is standardized. For a 4-cylinder engine, the connections for the 5th and 6th cylinders will remain unused.

The optimal location for installing the ECU is adjacent to the stock unit. The stock ECU locations are as follows:

  • W124: Under the hood, next to the battery
  • W126: Front passenger footwell compartment

Extract the necessary wires from the new harness. Connect all new wires in parallel with the stock ECU unless otherwise specified.

Connection to the 25pin ECU

  • 1 - 12V
  • 2 - GND
  • 3 - IDLE (optional, read Idle Control section below)
  • 5 - K-FULL
  • 8 - Lambda - cut the wire to the stock ECU
  • 13 - K-IDLE
  • 21 - CLT
  • 25 - AN

Connection to the 55pin ECU

  • 6 - GND
  • 9 - 12V
  • 13 - Lambda - cut the wire to the stock ECU
  • 16 - CLT
  • 23 - IDLE (optional, read Idle Control section below)
  • 27 - AN
  • 46 - K-FULL
  • 47 - K-IDLE

Idle control

The stock Mercedes IAC controller is functioning properly and can remain unchanged. If you wish to control the IAC valve using Invent ECU, disconnect the wire from the stock ECU and connect it to the IDLE w

Attention

Only a 2-wire idle valve is supported. For a 3-wire valve, an external circuit is required. For further details, please refer to the Additional Information section at the end of the document.

Lambda sensor

Attention

Ensure the lambda is disconnected from the stock ECU to prevent any interference.

If your vehicle lacks a lambda sensor or if the existing sensor is malfunctioning, it is recommended to install a universal Bosch sensor, either model 0258986507 or 0258006537.

The original lambda probe features three wires: ECU signal, ECU ground, and heater +12V. It does not include a heater ground wire, as the exhaust pipe serves as the ground.

The new lambda probe is designed with two separate heater wires, and the heater is isolated from the sensor housing, providing a more robust design.

Connection diagram:

  • White wires: Connect one to the lambda heating connector or the fuel pump supply, and the other to the car chassis.
  • Black: Connects to the LAMBDA wire of the ECU
  • Gray: Connects to the ground point of the ECU

LPG

Connect the EXT wire to the gas supply valve and activate the LPG mode by EXT input in the settings. The ECU will then adjust to operate on gas fuel.

For carburetted LPG systems, it is unnecessary to disconnect the power from the gasoline injectors. Simply select the Turn off injection option, and the fuel supply will be interrupted by the signal from the EXT. Connect the EXT wire to the gas supply valve and activate the LPG mode by EXT input in the settings. The ECU will then adjust to operate on gas fuel.

Air conditioner

Connect the AC (or EXT) wire to the air conditioner clutch wire. This connection is essential for maintaining the idle RPM when the air conditioner is engaged.

K-Line

To connect the K-Line cable, you will need to prepare three wires: Typically, the Bluetooth interface is used to connect to the ECU. However, in rare instances where the Bluetooth connection proves unreliable, the K-Line can be utilized as an alternative.

To connect the K-Line cable, you need 3 wires:

  • 12V
  • Ground
  • K-line

Pinout of the K-Line cable:

Pinout of the car OBD2 connector

Other wires

This manual does not mention certain additional wires, which are reserved for future use. Please ensure that any unused wires are isolated and concealed within the harness.

Additional info

Stock ECU pinout

  • 1 - Main relay power (Yel)
  • 2 - Ground (Brn)
  • 3 - Idle speed control valve control (Red/Wht)
  • 4 -
  • 5 - Full load throttle (Gry/Yel)
  • 6 - Speed sensor (Grn/Yel)
  • 7 - Ground/Return for cool. sensor (Brn/Wht)-Coolant sensor return for MY 1988 California version
  • 8 - Oxygen sensor input (Grn)
  • 9 - Fuel pump relay A/T (Grn/Blu)
  • 10 - Electro-hydraulic actuator control(Brn/Blk)
  • 11 - Altitude sensor (Blu/Red)
  • 12 - Electro-hydraulic actuator supply (Brn/Blk)
  • 13 - Closed throttle (Brn/Yel)
  • 14 -
  • 15 - Check engine indicator (Red/Grn)
  • 16 - Ignition switch (Vio)
  • 17 - Air flow sensor Input (Blu/Wht)
  • 18 - Air flow sensor reference (Blu/Grn)
  • 19 - A/C compressor (Blu/Yel)
  • 20 - Ground (Brn/Red)
  • 21 - Coolant temperature sensor (Grn/Red)
  • 22 -
  • 23 - Diagnostic
  • 24 - Deceleration micro-switch input (Gry/wht)
  • 25 - TD signal (Grn/Yell)

  • 1 - Supply Battery voltage
  • 2 - Purge valve
  • 3 - 02 sensor heater voltage
  • 4 - Idle speed control valve (+)
  • 5 - Intake Air temperature sensor
  • 6 - Chassis ground
  • 7 - Impulse readout, malfunction memory
  • 8 -
  • 9 - Supply voltage
  • 10 - Deceleration fuel shut-off microswitch
  • 11 - Start signal
  • 12 -
  • 13 - 02 sensor signal
  • 14 - Intake air temperature sensor
  • 15 -
  • 16 - Coolant temperature sensor
  • 17 -
  • 18 - Diagnostic signal 02 sensor heater
  • 19 - Ground ECU
  • 20 - Start valve activation
  • 21 -
  • 22 -
  • 23 - Idle speed control Valve (-)
  • 24 - Check engine warning lamp
  • 25 -
  • 26 - Data exchange with EZL ECU
  • 27 - RPM signal
  • 28 - Selector lever position
  • 29 - Speed signal
  • 30 - Lambda output, on/off ratio
  • 31 - Air flow sensor supply voltage
  • 32 - 02 sensor wire shielding
  • 33 -
  • 34 - Air flow sensor ground
  • 35 - Ground
  • 36 -
  • 37 - Electro hydraulic actuator (+)
  • 38 - EGR valve
  • 39 - Transmission shift point control
  • 40 -
  • 41 - Supply voltage
  • 42 - Air pump control signal
  • 43 -
  • 44 -
  • 45 - A/C compressor engagement signal
  • 46 - Full load throttle signal
  • 47 - Closed throttle signal
  • 48 -
  • 49 -
  • 50 -
  • 51 -
  • 52 - Air flow sensor input signal
  • 53 -
  • 54 -
  • 55 - Electro hydraulic actuator (-)

MAP sensor pinout

Invent Jetronic ECU pinout
8 7 6 5 4 3 2 1
A IDLE INJ1 INJ2 INJ3 INJ4 INJ5 INJ6 X1**
B +12V CLT TPS AN KLINE EMUL IDLE SW FULL SW
C GND 5V OUT IAT MAP LAMBDA EXT DH AC*

() - available in version 2.3 (*) - available in version 2.5

3-wire IAC valve

This valve contains two windings: one for opening and another for closing.

An external circuit is necessary to connect this valve. A MOSFET capable of handling over 5A of current and more than 55V of voltage is used (for example IRFZ44)

The dotted line represents the IAC case

Abbreviations

  • MAP - absolute pressure sensor
  • TPS - throttle position sensor
  • IAT - sensor air temperature
  • CLT - coolant temperature sensor
  • DH - Hall sensor
  • AFS - airflow sensor
