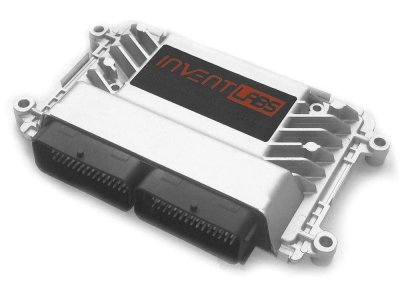

Invent EMS

Universal Engine Management System

VVT

Control of 2 inlet and 2 outlet camshafts. Fueling and ignition corrections by the camshaft rotation angle.

Drive by wire

Optional DBW module inside ECU. Traction control, engine protections, soft RPM limit, and other important functions.

CNG/LPG

Direct control of gas injectors. Automatic gas-petrol changeover. Operation of a gas engine (without petrol fuel system)

Boost Controller

Flexible adjustment of pressure by gears, pedal, air temperature. Boost-off in emergency modes.

Motorsport

Traction control, flat shift, launch control. A set of protections for boost pressure, engine temperature, exhaust, oil.

Comfort

Dynamic acceleration smoothing, non-linear throttle control, boost limiting, etc. Driving like a stock car.

Automatic transmission

The integrated AT controller with sport mode allows the perfect match for engine and transmission

Reliability

Waterproof housing and connector. Automotive-grade components. Power outputs with overcurrent and overheating protection. Automated board assembly.

Crankshaft sensors

  • Audi trigger (two sensors on the flywheel, Audi AAN)
  • Crank + Cam (crank sensor + phase sensor on camshaft, Toyota JZ)
  • 60-2 / 36-1, etc. With any number of teeth
  • 36-2-1 (Mitsubishi)
  • 36-2-2-2 (Subaru / Mazda)
  • 6 + 1 (one of the teeth - double) with any number of teeth (Honda)
  • Nissan optical sensor

Main functions

  • 2 sets of calibrations (for example, petrol/gas, petrol/ethanol, etc.)
  • Driving of low-impedance injectors, including CNG/LPG
  • Gas-petrol automated switching
  • 2 rows of injectors
  • Boost pressure limiting by RPM, pedal, gears.
  • Methanol/nitro corrections.
  • Traction control (anti-slip)
  • VVT / VANOS control, 4 camshafts supported
  • Closed loop lambda control with long-term adaptation

Service functions

  • Air conditioning control, with pressure sensors
  • Automatic engine start by external input

Fueling strategies

  • MAP (for forced induction)
  • MAP+TPS (for NA engines)
  • TPS+MAP (for throttle bodies)

Engine protection

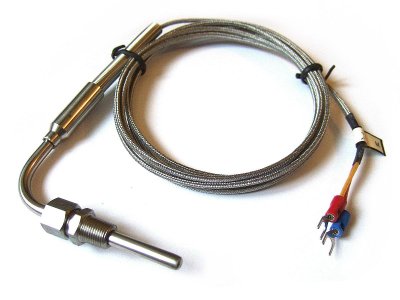

  • EGT (fueling correction, boost reduction, throttle closing, RPM limiting)
  • AFR (cut-off if critical leaning occured)
  • Overboost (fuel cut, throttle closing)
  • Oil pressure (fuel cut if pressure dropped)
  • Oil temperature (boost reduction, RPM limiting)
  • Engine temperature (boost reduction, RPM limiting)

Diagnostics

  • Separate testing of each coil and injector
  • Injector PWM testing mode
  • Integrated recorder of crank/cam signals, coils, injectors (analyzer mode)

Features of the program

  • Window size is optimized for the netbook screen
  • Table editor adapted for controlling with keyboard
  • Injection autocalibration
  • Editing tables "on the fly" on the running engine
  • Tables with ability to overlay log data
  • Password protection of calibrations

Interfaces
USB Built in
Bluetooth Built in
Data bus For Logger, Display
Inputs
Impulse inputs (crank, cam, speed) 4 inductive, 3 hall
Absolute pressure sensor External
Standard Analog Inputs MAP, CLT, IAT, TPS, Lambda
Additional analog inputs 8
Knock sensors 2
Outputs
Ignition channels 8
Injection channels 8
Universal power outlets (lamps, relays, stepper engine) 12
Number of PWM channels 6 (2 combined with universal outputs)
Tachometer output 1
DBW module Yes (optional)
PWM injector driver Yes (optional)

Invent EMS
Invent EMS
Invent Commander
Invent Commander
Dash for Android
Dash for Android

Online order

Payment

We accept Visa / MasterCard payment cards and Google Pay / Apple Pay (when paying from mobile browser).
Payment is processed by the European payment system Fondy.eu

visa/mastercard

Warranty

The product warranty is 12 months.
The warranty is valid if there is no mechanical or electrical damage due to improper operation or incorrect connection.

Return and Refund Policy

You can return items within 30 days after receiving, provided that items are not damaged.
The money is returned after we receive and check items. Shipping is payed by buyer.
